MultiVariate Bar Chart

The MultiVariate Bar Chart enables you to visualize multiple categorical dimensions against a numerical measure, split across dynamic grids. It supports grouped or stacked bars, multiple axes, heatmap overlays, and advanced color and tooltip customizations.

Key Features:

  • Supports multiple categorical Axis dimensions.
  • Optional Group dimension to group bars within each axis.
  • Configurable multi-grid layout (rows, columns, margins).
  • Stacked bars toggle for cumulative view.
  • Heatmap overlay via Visual Map.
  • Per-series custom colors, border radii, and shadows.
  • Rich tooltips and axis labels, including log-scale support.
  • Drilldown enabled via click interaction.

Use Cases:

  • Multidimensional category-measure breakdown.
  • Distribution analysis across multiple groups or regions.
  • Stacked or grouped bar visualizations.
  • Custom color-mapped bar charts with heatmap intensity mapping.

βš™οΈ Setup

  1. Add a MultiVariate Bar Chartwidget from the chart library onto your designer workspace.
  2. Select the chart.
  3. Go to the Widget Configuration tab in the Customize panel.
  4. Under the Configuration tab, select the Basic Configuration option to access the essential settings for the multi variate bar chart.
  5. Select the Source which the chart will pull the data from the option.
  6. Map:
    • Value β€” Numeric measure for bar length.
    • Axis β€” One or more categorical dimensions (minimum 1, up to 10).
    • Group (optional) β€” Additional dimension for grouped bars within each axis.
  7. Optionally add a Date field for time-based filtering.
  8. Enable Hide Zero Values to omit symbols with zero values if needed.

πŸ“Š Basic Configuration

Configuration ItemDescription
SourceSource providing the data for measures and dimensions.
ValueNumeric measure representing bar size.
AxisOne or more categorical fields for splitting grids.
Group (optional)Additional dimension for grouped bars.

🎨 Chart Customizations

CategoryOptions & Description
GeneralModify the chart’s general appearance, including the background color, borders, shadows, and drill-out choices.
TitleEnable and customize chart title text, alignment, font, and color.
SortingDefine custom sort orders for categories along the X and Y axes.
GridAdjust chart margins, grid spacing, and padding around the matrix area.
LegendToggle visibility, position, orientation, and customize legend labels and icons.
HeatMapConfigure a visual color map to represent value intensity with a gradient.
Categorical Axis (X, Y)Customize axis labels, intervals, rotation, visibility, and range sliders for both axes.
Numerical AxisValue axis scaling, label formatting, log scales.
SeriesBar style options β€” colors, border radii, shadows, labels.
TooltipControl tooltip content, formatting, and visibility on hover.
OthersToggle stacking, single series color mapping, box shadow control.

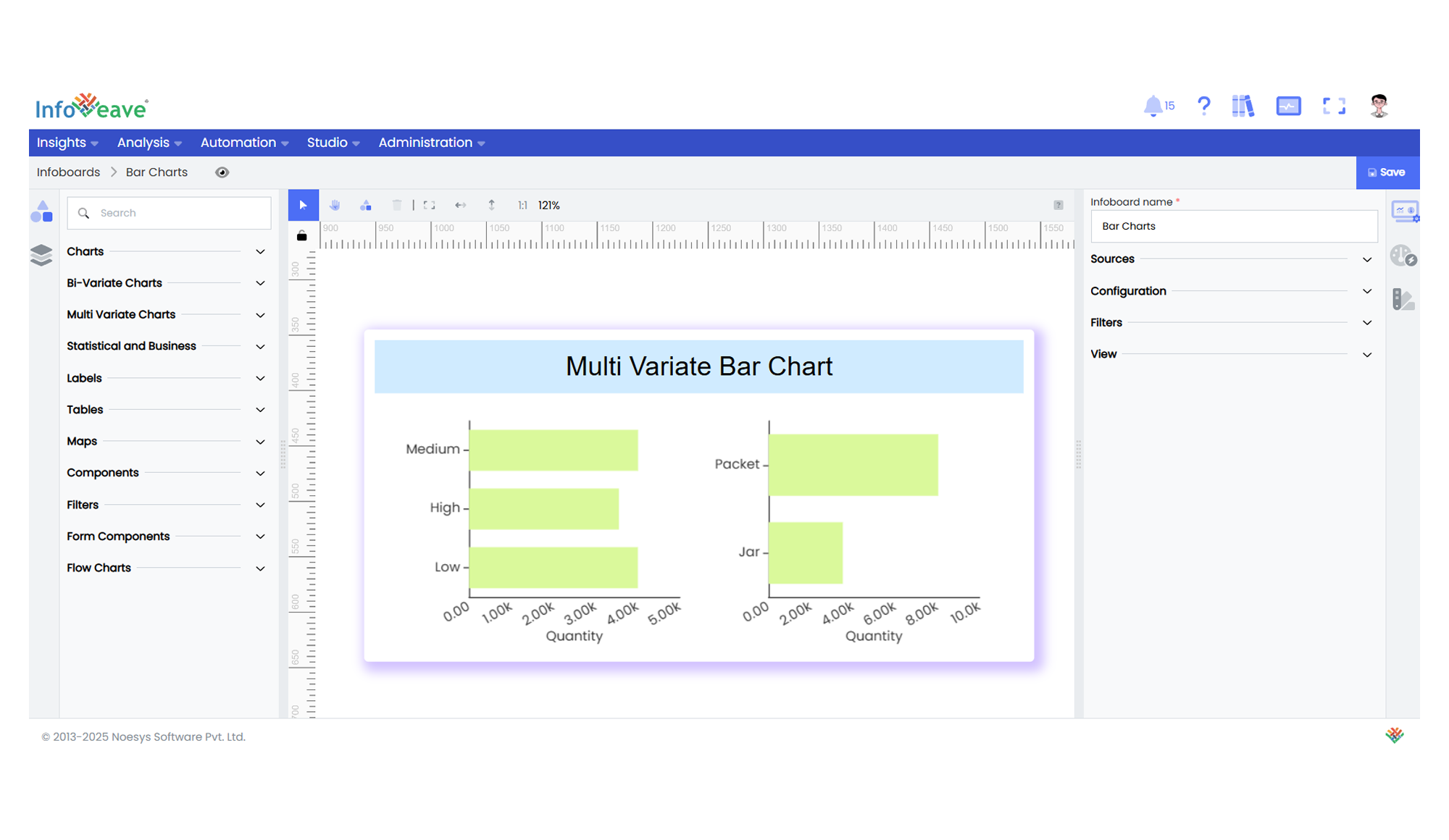

πŸ“Š Example Visualization

Multi variate bar
