# Split http query

## Description

The **Split HTTP Query** activity is used to extract and convert HTTP query strings embedded within URLs into structured, column-based data. This is particularly useful in cases where user input, system requests, or web-tracking data are passed as URL query parameters and stored in a single column.

This activity scans each value in the selected column to detect standard query string structures—those typically following a `?` in a URL, such as: `https://domain.com/resource?key1=value1&key2=value2`

Once detected, it parses each parameter (key-value pair) and creates new columns in the dataset, assigning values from the query string accordingly. This enables users to access and manipulate data like `id`, `name`, `department`, etc., as individual fields rather than dealing with them inside an encoded string.

> **Example Use Case**:
> You may have a dataset of employee links where each URL includes parameters like `?id=E003&name=Carlos+Gomez&department=Engineering`. This activity will extract `E003`, `Carlos+Gomez`, and `Engineering` into separate columns named `Key_id`, `Key_name`, and `Key_department`, making the data easier to read, filter, or aggregate.

---

## Input

| Type     | Description                                                                                                                                         |
| -------- | --------------------------------------------------------------------------------------------------------------------------------------------------- |
| **Data** | A dataset containing a column with HTTP URLs or raw query strings. The column must follow the typical format with key-value pairs separated by `&`. |

---

## Output

| Type                 | Description                                                                                  |
| -------------------- | -------------------------------------------------------------------------------------------- |
| **Transformed Data** | A dataset where the selected column's query parameters are expanded into individual columns. |

---

## Configuration Fields

| Field Name           | Description                                                                                                                                                                                                                             |
| -------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| **Column Name**      | The column to be parsed. It should contain complete URLs or raw query strings containing key-value pairs separated by `&`. Only a single column can be selected.                                                                        |
| **Prefix**           | A custom prefix for the newly created columns. Each extracted key will be appended to this prefix. For example, a key `id` with prefix `Key_` becomes `Key_id`. This is useful to prevent naming collisions or to group similar fields. |
| **Include Original** | Determines whether the original input row is retained. <br> - **Enabled**: Keeps all the original columns, including the raw HTTP query. <br> - **Disabled**: Only shows the parsed query parameter columns.                            |

---

## Sample Input

| employee_id | name         | http_query                                                                    |
| ----------- | ------------ | ----------------------------------------------------------------------------- |
| E001        | John Doe     | https://company.com/employee?id=E001&name=John+Doe&department=Sales           |
| E002        | Marie Dupont | https://company.com/employee?id=E002&name=Marie+Dupont&department=Marketing   |
| E003        | Carlos Gómez | https://company.com/employee?id=E003&name=Carlos+Gómez&department=Engineering |

---

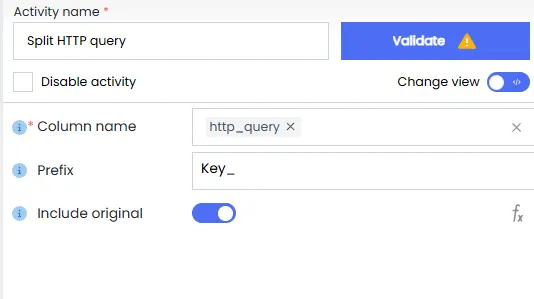

## Sample Configuration

| **Field**            | **Value**    |
| -------------------- | ------------ |
| **Column Name**      | `http_query` |
| **Prefix**           | `Key_`       |
| **Include Original** | Enabled      |

---

## Sample Output

| employee_id | name         | http_query                                                                    | Key_id | Key_name     | Key_department |
| ----------- | ------------ | ----------------------------------------------------------------------------- | ------ | ------------ | -------------- |
| E001        | John Doe     | https://company.com/employee?id=E001&name=John+Doe&department=Sales           | E001   | John+Doe     | Sales          |
| E002        | Marie Dupont | https://company.com/employee?id=E002&name=Marie+Dupont&department=Marketing   | E002   | Marie+Dupont | Marketing      |
| E003        | Carlos Gómez | https://company.com/employee?id=E003&name=Carlos+Gómez&department=Engineering | E003   | Carlos+Gómez | Engineering    |

---
