Execute GraphQl

Description

The GraphQL activity allows you to interact with external systems using the GraphQL protocol. You can perform queries (to retrieve data) or mutations (to update data), customize request headers, handle variables, and paginate through results using dynamic keys.

Use this activity to:

• Execute queries to retrieve structured, nested data from APIs
• Send mutations to modify or create records in external systems
• Handle authentication via headers
• Control pagination using nextPageKey behavior

Use Case:
Use this when integrating with platforms that expose GraphQL APIs (e.g., Shopify, GitHub, Contentful). For example, fetch product listings using GraphQL query, or update customer data using a mutation.

---

Input

Optional — used only if query variables are dynamically provided from a previous activity.

---

Output

Output Type	Format	Description
Data	JSON	Structured response based on the query and root

---

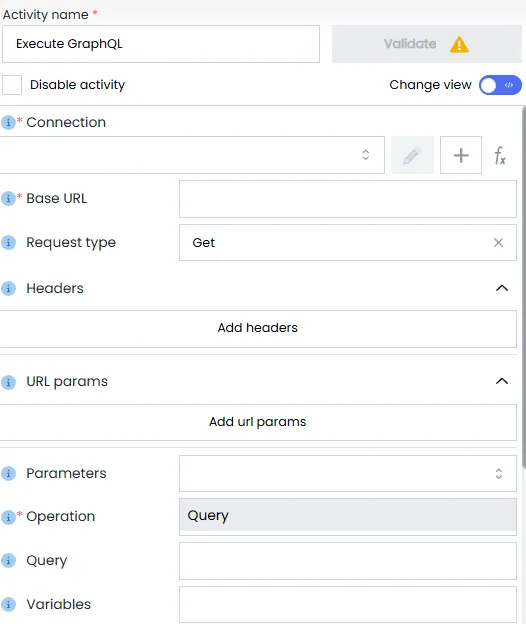

Configuration Fields

Field Name	Description
Connection	Authentication/session info for the GraphQL API.
Base Url	URL of the GraphQL API (e.g., https://api.example.com/graphql).
Request Type	HTTP method (GET or POST) used for the GraphQL call.
Headers	Key-value headers like Authorization, Content-Type.
Url Params	Optional query parameters appended to the URL.
Parameters	Additional key-value parameters for the request body.
Operation	Choose between query or mutation.
Query	The GraphQL query or mutation string.
Variables	Key-value pairs for GraphQL variables used in the query.
Root Of Response	Path inside the response JSON from which to extract output (e.g., data.products.nodes).
Next Page Key	Key used for pagination (e.g., pageInfo.endCursor).
Next Key Behaviour	How to pass the next page key (as URL param or as GraphQL variable).
Data For	Optional time frame for which to fetch data.
Start Date	Start date used when Data For = Date Range.
End Date	End date used when Data For = Date Range.

---

Sample Input

Not Applicable

---

Sample Configuration

Field	Value
Connection	shopify-products
Base Url	https://example.myshopify.com/graphql.json
Request Type	POST
Operation	query
Query	{ products(first: 10) { edges { node { id title } } } }
Root Of Response	data.products.edges

---

Sample Output

id	title
gid://123/1	Cotton T-Shirt
gid://123/2	Leather Wallet
gid://123/3	Running Shoes
