Description
The Numerical Formatting activity applies user-defined formatting styles to numerical columns in a dataset. This is useful when preparing data for display, reporting, exports, or UI-based presentation.
You can choose from multiple formatting patterns such as comma separators, Indian numbering format, or percentage notation.
Use this activity to:
- Format raw numeric values for visual clarity
- Convert decimal values into percentages
- Prepare clean numeric outputs for Excel exports, dashboards, or reports
Use case:
Convert large raw numbers into formatted figures like “500000” → “500,000” and decimal profits like “0.15” → “15%” for presentation.
| Input Type | Status |
|---|
| Data | Required |
Output
| Output Type | Format | Description |
|---|
| Data | Table | Data with formatted numeric columns |
Configuration Fields
| Field Name | Description |
|---|
| Column Map | Select columns and assign a numeric formatting style to each. |
| Include Original | Retains original column if enabled, otherwise returns only formatted one. |
Auto – Automatically determines best-fit format#### – No grouping or symbol, e.g., 500000##,## – Western number system (e.g., 500,000)##,##,## – Indian number format (e.g., 5,00,000)Percentage (%) – Multiplies by 100 and appends %None – No formatting
| Product | Sales | Profit |
|---|
| A | 500000 | 0.15 |
| B | 120000 | 0.20 |
| C | 950000 | 0.05 |
| D | 45000 | 0.12 |

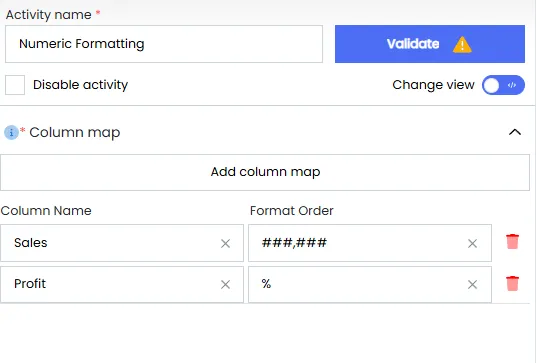

Sample Configuration
| Column | Format |
|---|
Sales | ##,## |
Profit | Percentage (%) |
Include Original: Enabled
Sample Output
| Product | Sales | Profit |
|---|
| A | 500,000 | 15% |
| B | 120,000 | 20% |
| C | 950,000 | 5% |
| D | 45,000 | 12% |
