Update rows
Description
The Update Rows activity modifies existing records in a database table by matching input rows (from previous activities) with existing records using specified key columns. The updates are made by mapping input columns to table columns through a column mapping configuration.
Use this activity when you want to sync changes from processed data back into your database, such as updating employee salaries, product inventory, or transaction statuses.
Use case:
After recalculating employee bonuses in a prior transformation, use Update Rows to write those updated amounts back to the HR database table using the Employee ID as the unique key.
Input
Input Type | Format | Description |
---|---|---|
Data | Table | Tabular data where each row represents a record to be updated. |
Output
Output Type | Format | Description |
---|---|---|
Data | Table | Updated rows from the database table. |
Configuration Fields
Field Name | Description | Required |
---|---|---|
Connection | Select or configure the database connection. This is used to authenticate and access the table to be updated. Supports SQL-compatible sources. | Yes |
Table | Name of the database table where rows should be updated. Must exist within the connected database. | Yes |
Key Columns | One or more columns that uniquely identify rows in the table (e.g., ID , Email ). Used to match input records with existing rows. | Yes |
Column Map | Maps each input column to the corresponding table column for updating values. Format: InputColumn → TableColumn . Can rename or transform field names. | Yes |
Sample Input
ID | Name | Salary | Department |
---|---|---|---|
101 | John Doe | 55000 | HR |
102 | Jane Smith | 66000 | HR |

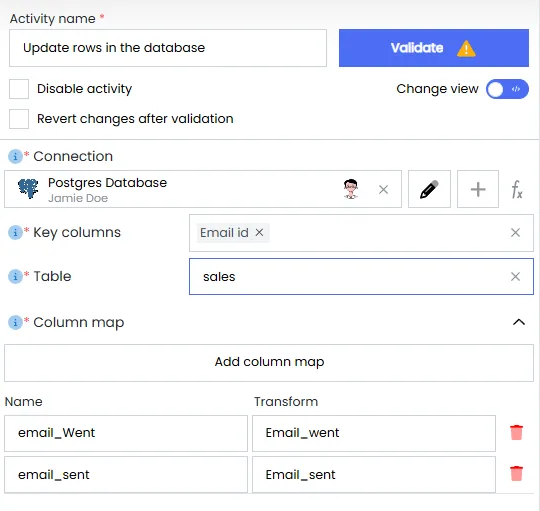

Sample Configuration
Field | Value |
---|---|
Connection | employee-db-connection |
Table | Employees |
Key Columns | ID |
Column Map | Name → FullName, Salary → Salary, Department → DeptName |
Sample Output
ID | FullName | Salary | DeptName |
---|---|---|---|
101 | John Doe | 55000 | HR |
102 | Jane Smith | 66000 | HR |
The matching rows in the database table were updated using the new data provided.
