Retrieve Odata
Description
OData (Open Data Protocol) is a standardized REST-based protocol used for querying and updating data. It allows interaction with web services using simple HTTP requests and supports CRUD operations, filtering, pagination, and more.
The OData activity fetches records from an OData-compliant data source (e.g., Microsoft Dynamics 365) using configured filters. It supports retry logic, pagination via Skip and Top, and delivers structured output suitable for downstream processing.
Use this activity to:
- Extract entity records from Microsoft Dynamics CRM or ERP systems
- Apply filters to query only specific rows or columns
- Integrate CRM data into automated workflows or dashboards
Use case:
Pull contact records from Microsoft Dynamics where the city is “Berlin” using theFiltersfield. The result can then be transformed and sent to external systems like Google Sheets or Zoho CRM.
Input
Not Applicable
Output
| Output Type | Format | Description |
|---|---|---|
| Data | JSON | Array of records retrieved from the OData source. |

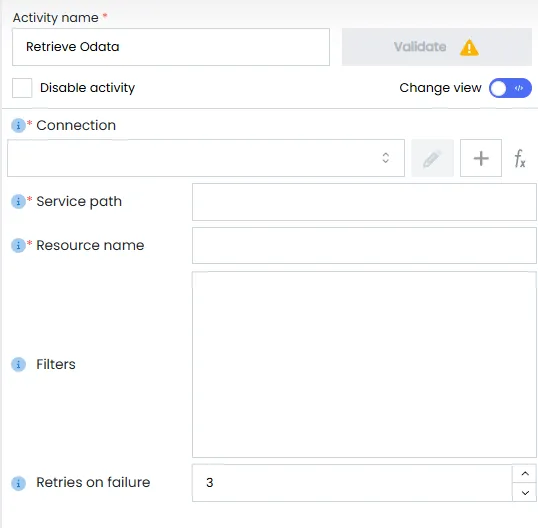

Configuration Fields
| Field Name | Description |
|---|---|
| Connection | Select the authentication configuration for Microsoft Dynamics or other OData source. |
| Resource Name | The logical name of the resource/entity to query (e.g., contacts, accounts). |
| Service Path | Path appended to the base OData URL (optional). |
| Number Of Retries | Number of retry attempts in case of request failures. Default: 3 |
| Filters | OData-compatible filters to narrow down the result set (e.g., city eq 'Berlin'). |
| Skip | Number of records to skip (used for pagination). |
| Top | Number of records to return. Leave blank to retrieve all available records. |
The
Filtersfield supports advanced OData syntax including logical operators (e.g.,and,or), comparison (eq,gt,lt), and functions (startswith,endswith).
Sample Input
Not applicable
Sample Configuration
| Field | Value |
|---|---|
| Connection | Dynamics365Connection |
| Resource Name | contacts |
| Filters | city eq 'Berlin' |
| Skip | 0 |
| Top | 100 |
| Number Of Retries | 3 |
Sample Output
The output is a JSON array of objects. Each object represents a record from the queried resource:
| Contact ID | First Name | Last Name | City | Email Address |
|---|---|---|---|---|
| abcd-1234-5678 | John | Doe | Berlin | [email protected] |
| efgh-5678-1234 | Anna | Schmidt | Berlin | [email protected] |
