Query Datasource

Description

The Query DataSource activity executes a structured query (e.g., SQL) against a configured data source such as a relational database, data warehouse, or cloud storage engine. You can retrieve the results directly as tabular output or optionally save them to a file using configurable export settings.

This activity is especially useful for dynamically pulling data into a workflow, generating reports, or integrating external data systems. When saving results to a file, it also supports advanced formatting using templates, encryption, and partitioning logic.

Use this activity to:

• Query databases and bring live data into workflows
• Export query results as Excel or CSV files
• Apply formatting using templates and control sheet/row structure
• Secure output files with encryption and filename customization

Use case: A data analyst can use this activity to run a sales report query on a PostgreSQL database. The output can be formatted using a template Excel file, encrypted using a secret key, and saved with a filename pattern that includes a timestamp.

Input

Type	Description
Data	Optional incoming data used to influence the query or filenames (if dynamic).

Output

Output Type	Format	Description
Data	Table or File	Query results, either in-memory (as table) or written to file(s).

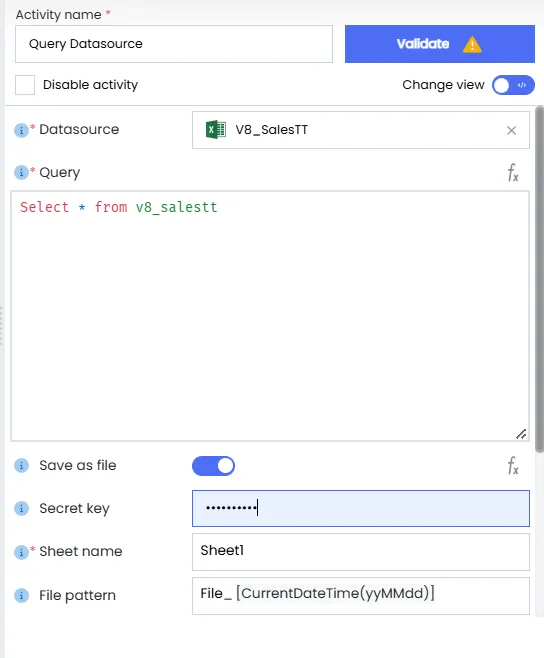

Configuration Fields

Field Name	Description
Datasource Id	Select the connection representing the data source (e.g., MySQL, SQL Server, Snowflake) where the query will run.
Query	The query string (SQL or supported query language) to be executed on the selected data source. Supports variables if dynamic queries are needed.
Save As File	Enable this option to save the query result to a file instead of returning it as in-memory table data.
Secret Key	Required only when “Save As File” is enabled. This encryption key secures the generated file’s content.
Sheet Name	Applicable for Excel files. Specifies the sheet name where query results will be written.
File Pattern	A pattern to define the file name dynamically, such as using a timestamp or input variable (e.g., SalesReport_{Date}).
Template File Path	Optional path to a template file (e.g., .xlsx) that provides a preformatted structure for the output file.
Template Sheet Name	If using a template, this defines the sheet within the template where data should be inserted.
Split By Column	When specified, the output data will be split by distinct values in this column, producing separate files or sheets. Useful for grouped file output.
Start Row	The row index (1-based) in the output file or sheet from which the query results will begin writing.
Start Column	The column index (1-based) in the output file or sheet where the data writing should begin.

All file-related fields are only rendered when Save As File is enabled.

Sample Input

Not Applicable

Sample Configuration 1

Field	Value
Datasource Id	postgresql-sales-db
Query	SELECT * FROM orders WHERE status = 'Paid'
Save As File	Diabled

Sample Output

When Save As File is Disabled:

order_id	customer_name	region	amount	status
1001	John Smith	East	120.50	Paid
1002	Alice Taylor	West	89.00	Paid

Sample Configuration 2

Field	Value
Datasource Id	postgresql-sales-db
Query	SELECT * FROM orders WHERE status = 'Paid'
Save As File	Diabled
File Pattern	paid_orders_{yyyyMMdd}.xlsx
Secret Key	securekey123
Template File Path	/templates/order_template.xlsx
Template Sheet Name	Orders
Sheet Name	Paid Orders
Start Row	5
Start Column	2
Split By Column	region

Sample Output 2

When Save As File is Enabled: below data is written to sepcified file and downloadable file is populated

order_id	customer_name	region	amount	status
1001	John Smith	East	120.50	Paid
1002	Alice Taylor	West	89.00	Paid
