Not Null Check Rule

Description

The Not Null Check rule ensures that a specific column does not contain null values. This rule runs on a single column and verifies whether the values meet the configured success criteria.

Configuration Fields

• Operator Options

  • Greater than
  • Less than
  • Equal to
  • Between (requires specifying a start and end range)

• Operator Defines the comparison operation (Greater Than, Less Than, Equal To, or Between).

• Value The threshold value used for success criteria. Required for Greater than, Less than, and Equal to operators.

• Value Range Required only when the Between operator is selected, specifying the start and end range.

• Threshold Type Indicates whether the Value or Value Range to be considered as percentage or an absolute count.

• Allow Null Values Determines if null values are permitted.

Success Criteria

The success criteria are evaluated based on the number of non-null values in the column:

• If the column has N rows, the number of non-null values is counted.
• The success condition is met if this count satisfies the given operator and value.
• For example, if operator is Greater than and value is 5, then the column must have more than 5 non-null values to be within the threshold.

Sample Input

ID	Name	Age
1	Alice	25
2	Bob	30
3	Charlie	NULL
4	David	NULL
5	NULL	NULL

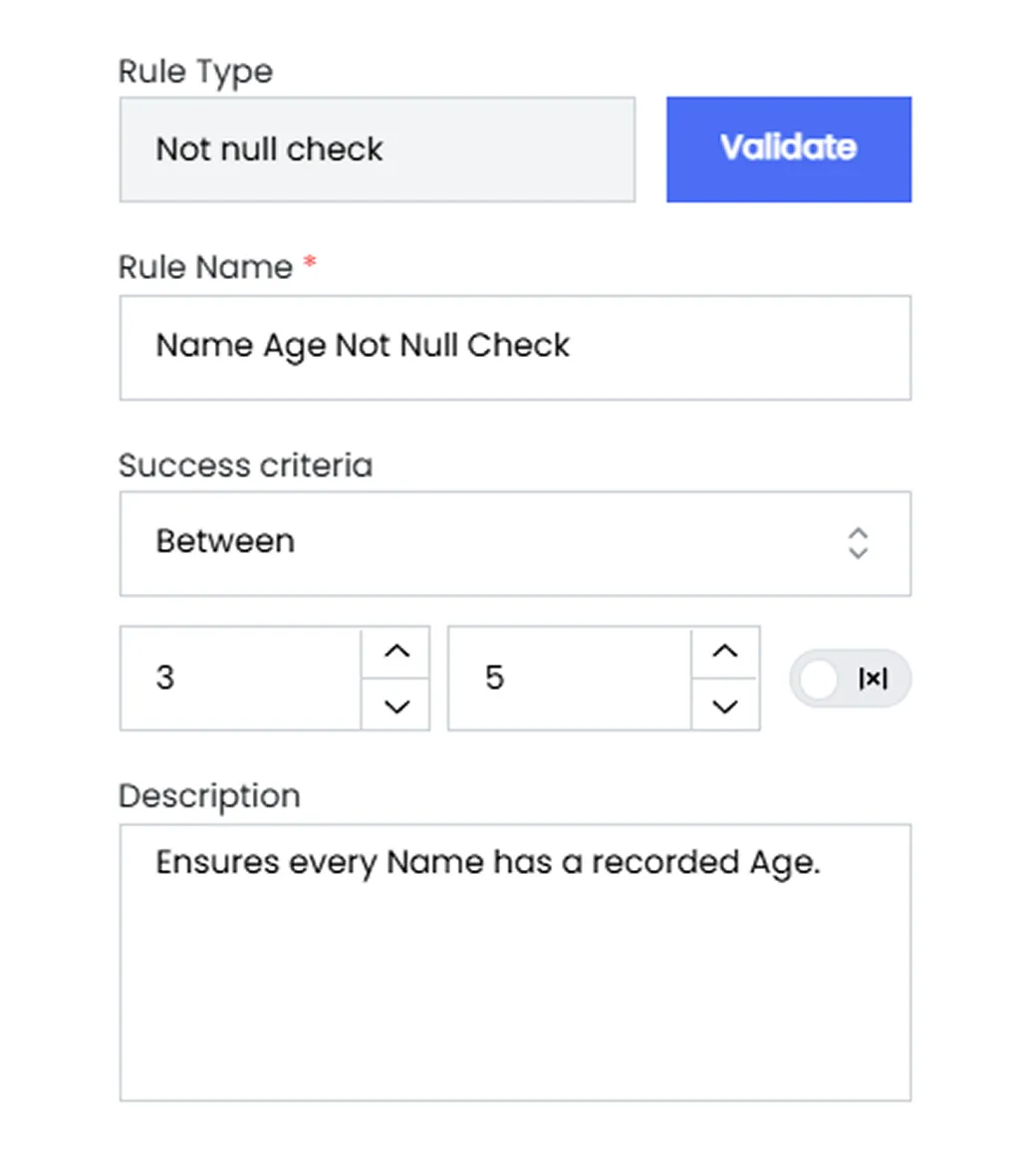

Sample Configuration

• Operator Between
• Value Range Start = 3, End = 5
• Threshold Type Absolute Count
• Allow Null Values Not Applicable

Sample Output

Column Name	Rule Name	Success Count	Failure Count	Within Threshold	Null Count
Name	Name Age Not Null Check	4	1	Yes	0
Age	Name Age Not Null Check	2	1	No	3
